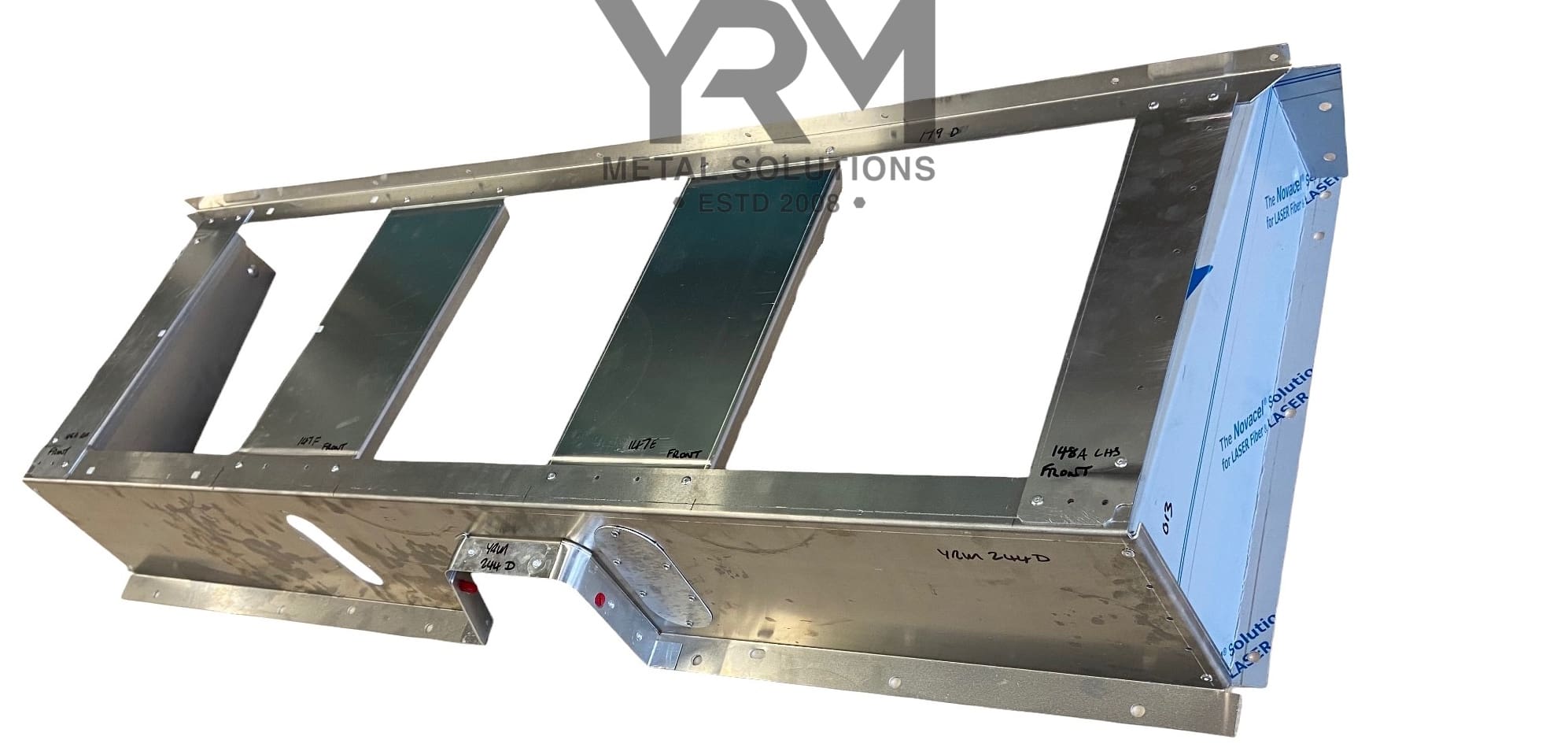

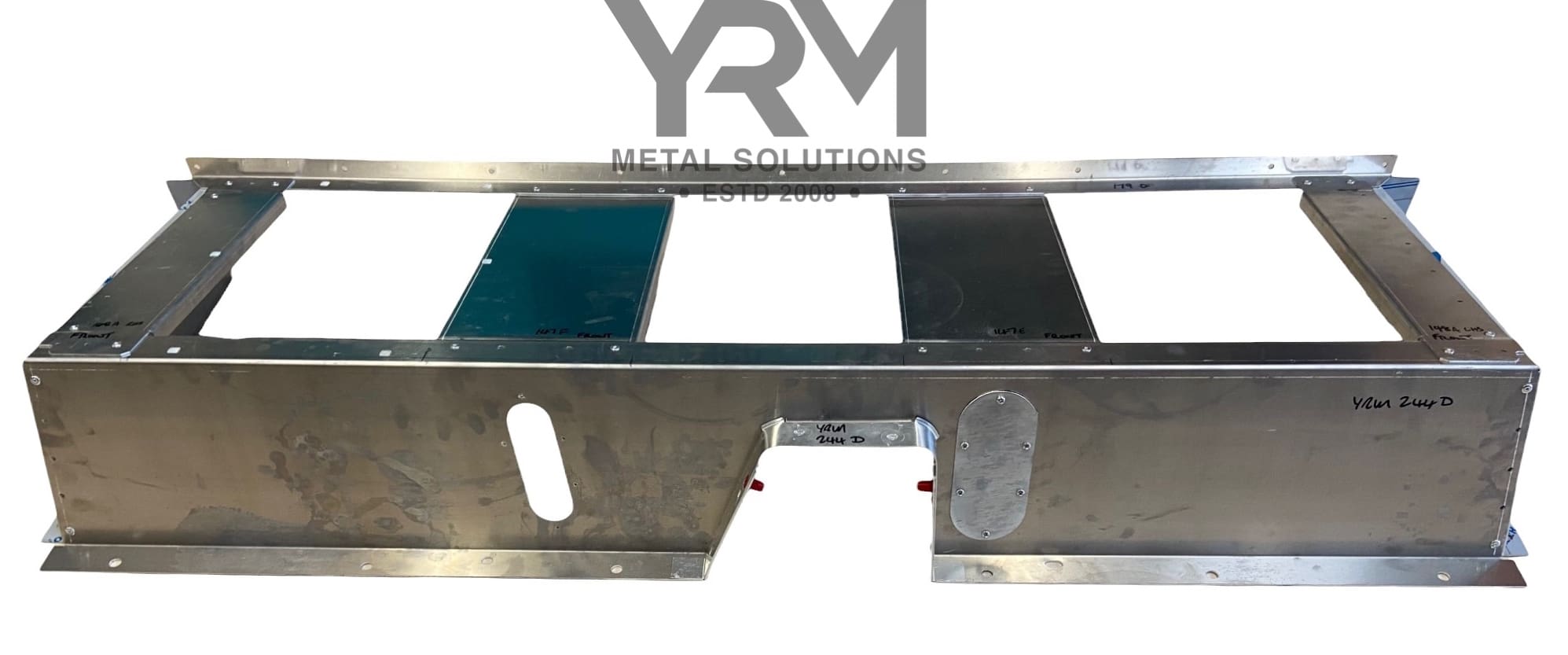

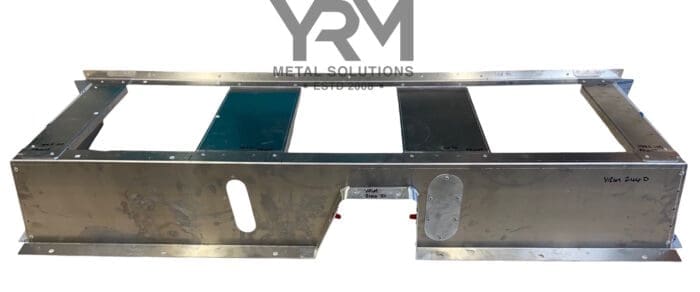

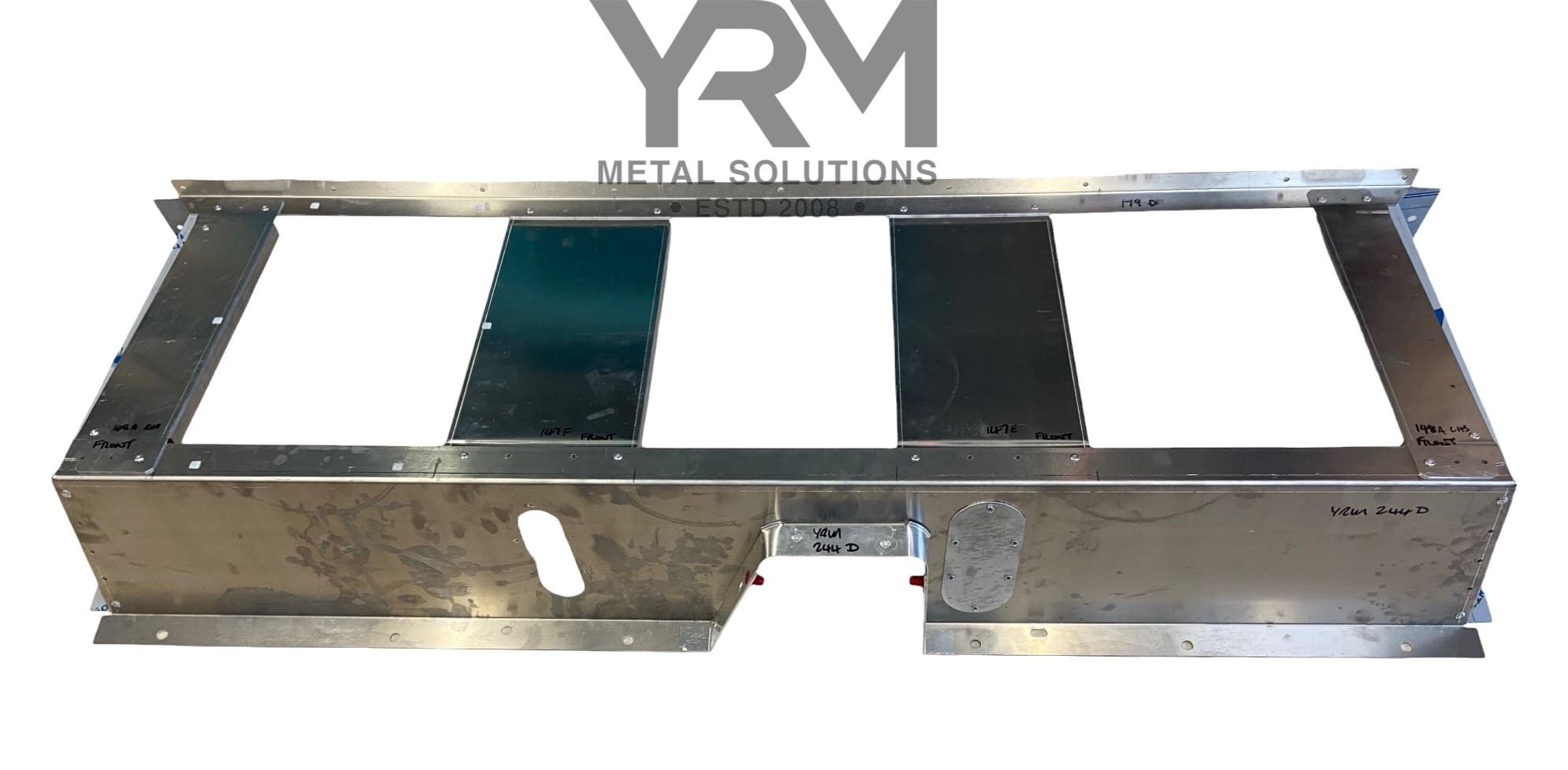

Seat Box Frame – LR Series 2/2A/3

YRM Ref: 356

FROM £0 Excl. VAT

JLR/OEM Ref MRC7174
Fits 1958 – 1983 Series 2/2A/3
Frame Consists of 1no YRM 013 – LHS Seat Box End

1no YRM 014 – RHS Seat Box End

1no YRM 147E – LHS Middle Seat Box Panel

1no YRM 147F – RHS Middle Seat Box Panel

1no YRM 148A LHS – Panel End of Seat Box Top

1no YRM 148A RHS – Panel End of Seat Box Top

1no YRM 179D – Seat Box Back Angle (With Rivnuts for Seat)

1no YRM 244D – Seat Box Front Panel with Adaptor Plate

100no YRM 1002/B Rivet
Optional Extras YRM 023 – LHS Under Seat Tool Box

YRM 037A – RHS Under Seat Toolbox

YRM 231 – LHS Seat Box Lid

YRM 232 – Centre Seat Box Lid

YRM 233 – RHS Seat Box Lid
Diagrams LR Series 2/2A/3 88″, 109″ & 127″ Seat Box Frame

LR Series 2/2A/3 88″, 109″ & 127″ Seat Box Lids

LR Series 2/2A/3 88″ Floor Plates

LR Series 2/2A/3 109″ Floor Plates

Fits:Series 2/3 88" Series 2/3 109" Series 2/3 127"

Specification

  • Weight
    16.2 kg
  • Dimensions
    150 × 57 × 20 cm
  • Thickness/Material

    Aluminiuim

  • Finish

    Self Finish, with vinyl protective film

  • Extra Information

    All parts can be purchased separately, If you would like to fit a battery inside the 023, you will require 023A, or you can not include 023 and instead add a 063 which is big enough to fit a battery., When fitting 037a, you would need to remove the 147F lip closest to the seatbox end, so the 037A fits flush underneath the 147F.
