A4, 316 stainess steel for increased corrosion resistance, If you require an alternative size or quantity, please email for prices, Please note – A4-80 is the equivalent of 8.8 high tensile bolts
S/S M8 A4-80 x 100mm Hexagon Head Bolt-DIN931
FROM £1.22 Excl. VAT

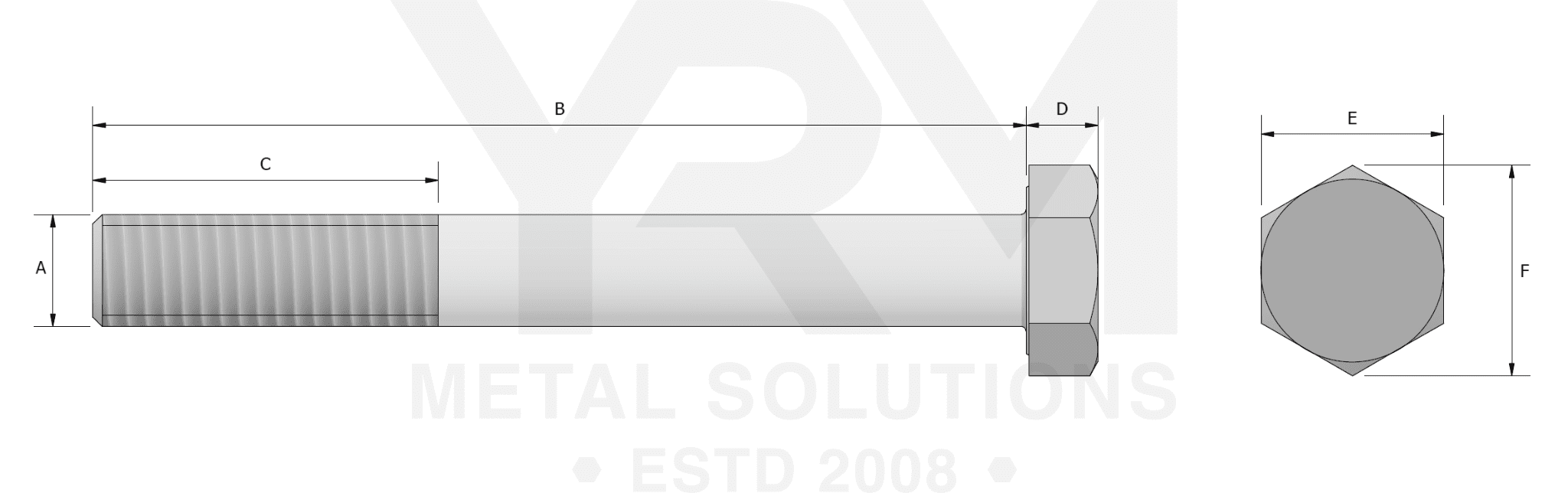

| Thread size (A) | M8 (8mm) |
| Length (B) | 100mm |
| Thread Length (C) | 22mm |
| Head Height (D) | 5.3mm |
| Socket Size (E) | 13.0mm |
| Width Across Corners (F) | 14.38mm |
| Material | A4-80 |
| Pitch | 1.25 |
| Finish | Natural |
