S/S A4-80 A Frame to Axle & Chassis Fixing Kit - LR Defender/D1/RRC (up to 2009)

S/S A4-80 A Frame to Axle & Chassis Fixing Kit – LR Defender/D1/RRC (up to 2009)

YRM Ref: 1030A

FROM £21.85 Excl. VAT

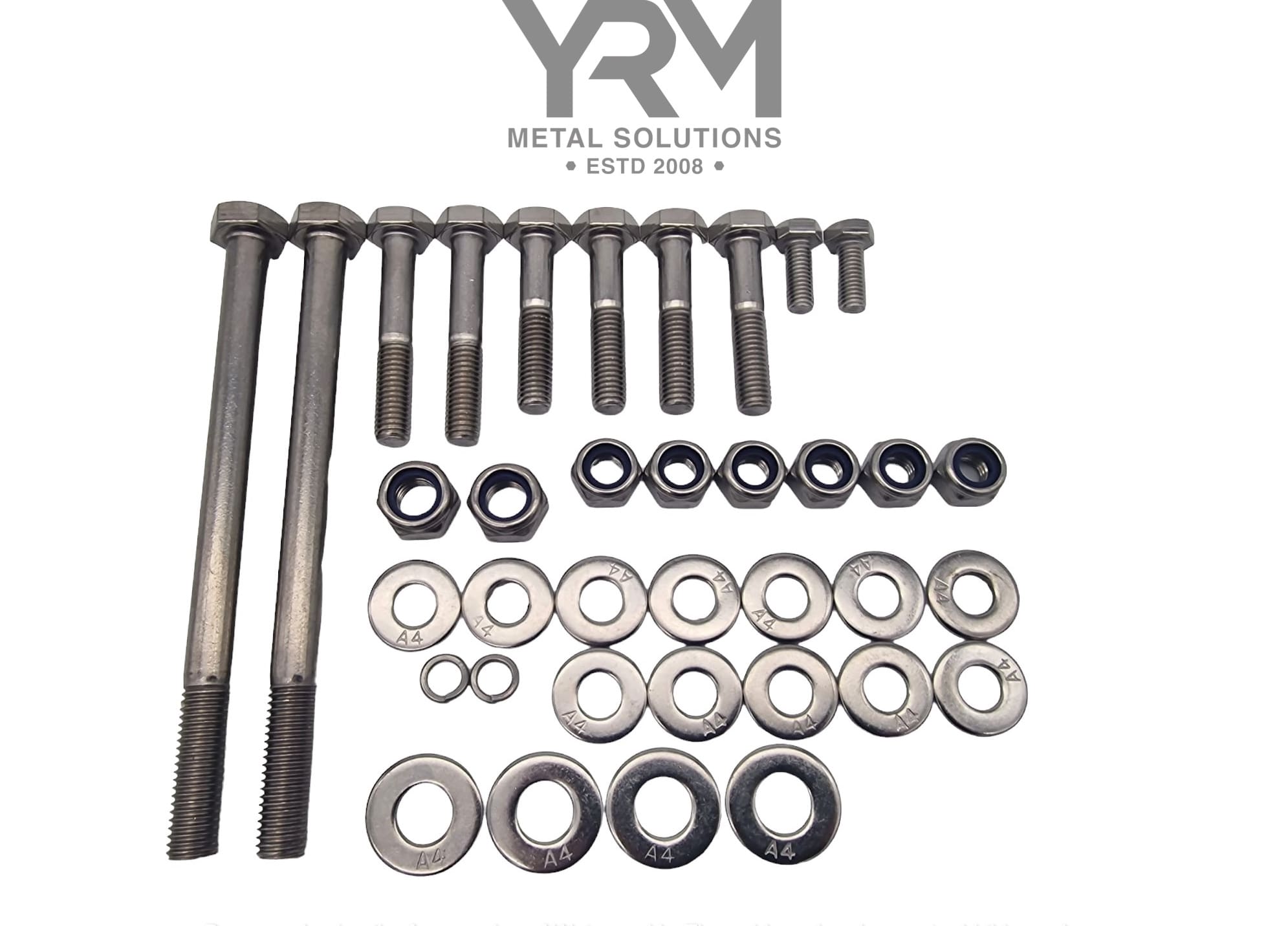

Fixings Included

JLR/OEM Ref

 2no M8 A4-80 x 20mm Hex Head Bolt (FS108207L)

2no M8 A4 Spring Washer (WM600051L)

4no M10 A4-80 x 50mm Hex Head Bolt (BX110091L)

2no M10 A4-80 x 60mm Hex Head Bolt (FC110116)

12no M10 A4 Flat Washer (WC110066)

6no M10 A4-80 Nylon Locking Nut (FY110056)

2no M12 A4-80 x 160mm Hex Head Bolt (253952)

4no M12 A4 Flat Washer

2no M12 A4-80 Nylon Locking Nut (NY608042)
Fits 1983 – 2009 Defender

1989 – 1998 LR Discovery 1

1970 – 1995 Range Rover Classic
Optional Extra
 YRM 1105 – BZP A Frame to Chassis Fixing Kit – LR Defender/D1/RRC

Fits:Land Rover Defender 90 Land Rover Defender 110 Land Rover Defender 130 Discovery 1 Range Rover Classic & LSE

Specification

  • Weight
    0.4 kg
  • Thickness/Material

    Fixings – A4-80 Stainless Steel

  • Finish

    Fixings – Self Finish

  • Extra Information

    If you don't have YRM 333 (crows feet) for fitting A Frame Arm to chassis, you will require YRM 1030B, as insert and bolts are M16 thread, Please note – A4-80 is the equivalent of 8.8 high tensile bolts
