A Frame Bush Kit inc S/S Fixings & Inserts, (Orange) - POLYBUSH - LR Defender (2009 onwards)

A Frame Bush Kit inc S/S Fixings & Inserts, (Orange) – POLYBUSH – LR Defender (2009 onwards)

YRM Ref: 2108 (1CM)

£58.20 Excl. VAT

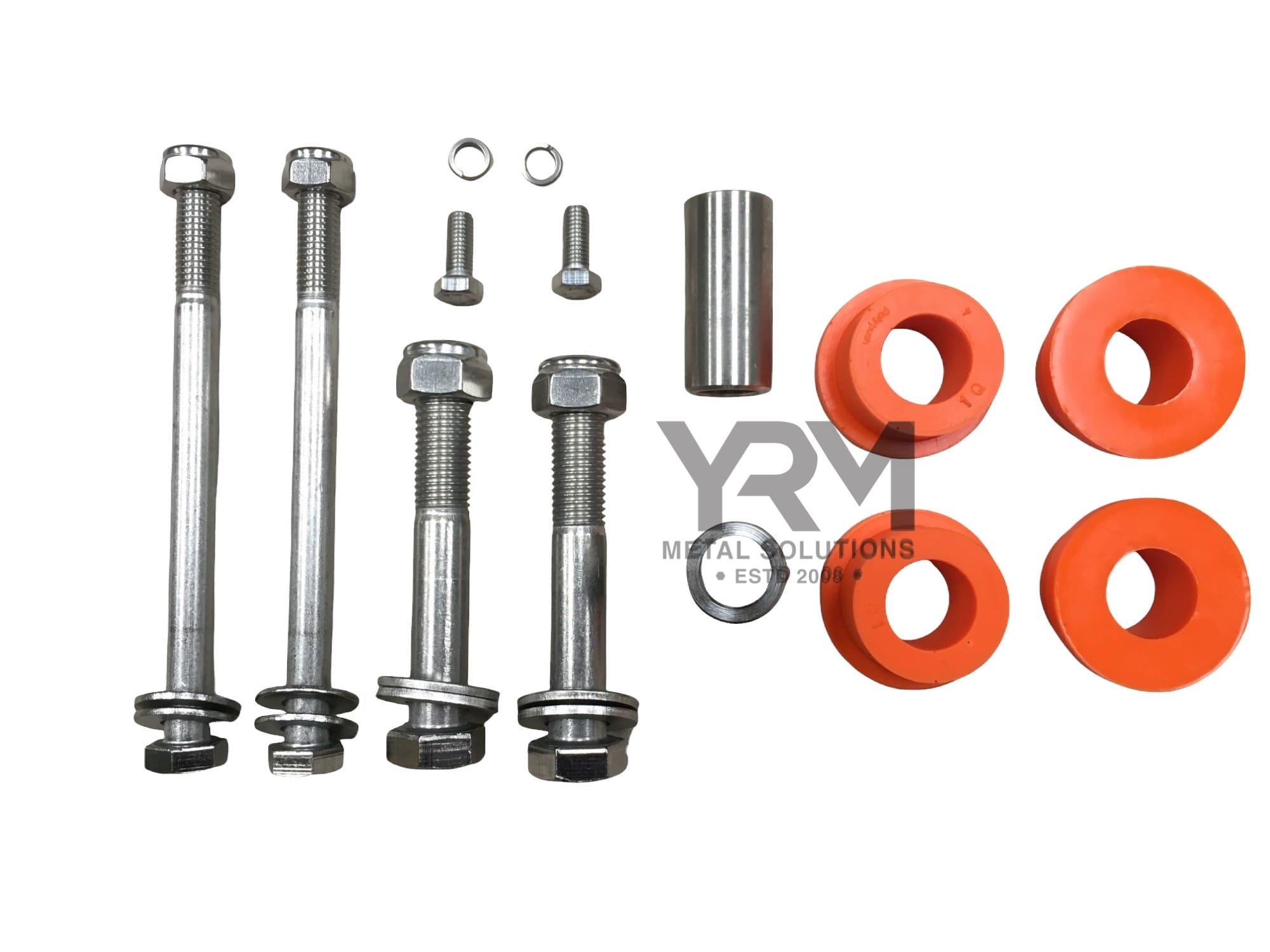

Fixings Included

JLR/OEM Ref

 A Frame Chassis/Axle Bush (4 per VS) (NTC1773)

2no Insert

2no M8 A4-80 x 20mm Hex Head Bolt (FS108207L)

2no M8 A4 Spring Washer (WM600051L)

2no M12 A4-80 x 160mm Hex Head Bolt (FC112326)

4no M12 A4 Flat Washer

2no M12 A4-80 Nylon Locking Nut (FY112056)

2no M16 A4-80 x 100mm Hex Head Bolt (RYG501550)

4no M16 A4 Flat Washer (WA120006)

2no M16 A4-80 Nylon Locking Nut (NY612042)
Fits 2009 – 2016 Defender

Fits:Land Rover Defender 90 Land Rover Defender 110 Land Rover Defender 130

Specification

  • Weight
    1.2 kg
  • Dimensions
    30 × 20 × 5 cm
  • Thickness/Material

    Fixings – Stainless Steel, Insert – 316 Stainless Steel, Polybush – Polyurethane

  • Finish

    Fixings & Insert – Self Finish, Polybush – Orange (Dynamic), but can supply in Red (Peformance) or Blue (Comfort) email for details

  • Extra Information

    Please note – A4-80 is the equivalent of 8.8 high tensile bolts, This kit is used when you have no YRM 333 (crows feet) on chassis and brackets are welded into chassis
